Product Overview

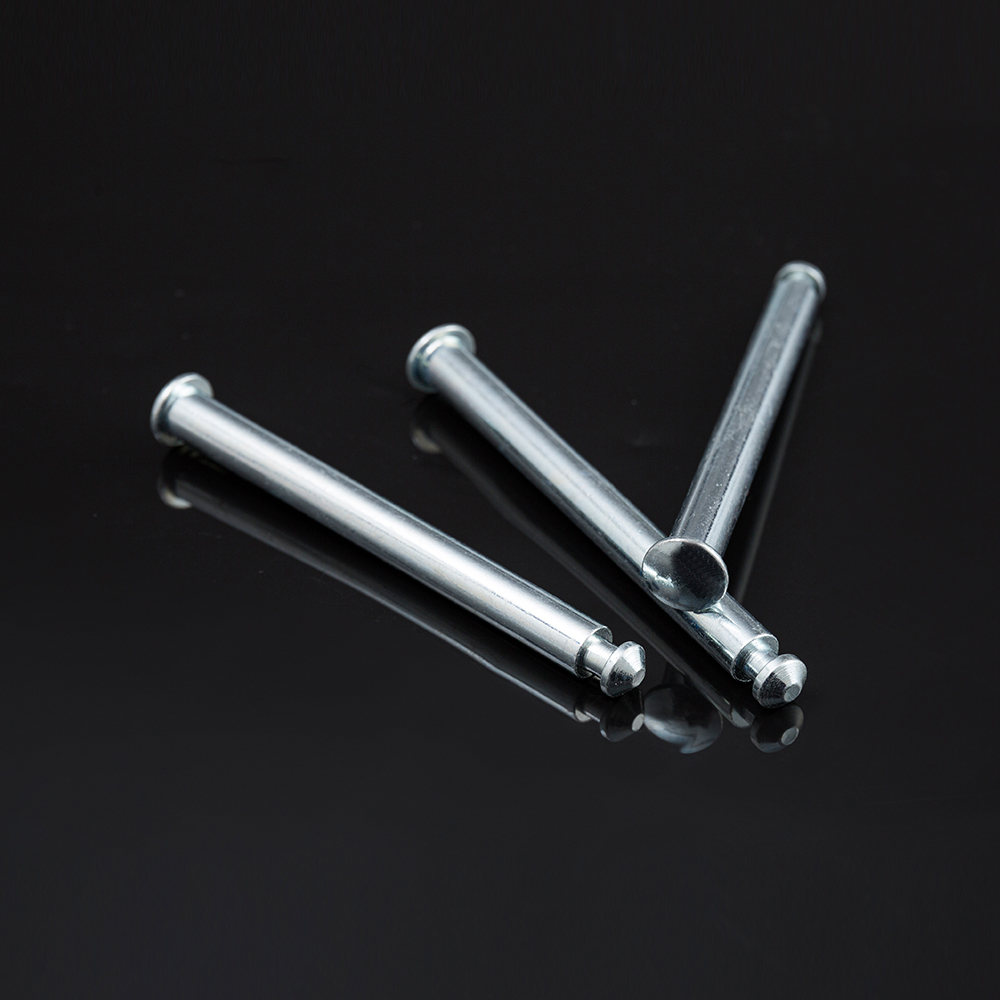

The Clevis Pin with Pilot Tip is a precision-engineered fastener designed for quick alignment and installation in clevis linkages and pivot assemblies. Its tapered pilot tip simplifies insertion into aligned holes, while the transverse hole allows for positive retention with a cotter pin or clip.
Key Features
Tapered pilot tip for quick alignment and easy installation.
Transverse hole for use with cotter pins or spring clips for positive retention.
Precision-machined shank for smooth, low-wear pivot connections.
High-strength construction for heavy-load mechanical linkages.
Available in various lengths and diameters for custom applications.
| Grade | Carbon Steel (5.8 / 8.8) / Stainless Steel 304 / 316 |
| Size Range | Ø3–Ø50mm (custom lengths available) |
| Standards | DIN 1443 / DIN 1444 / ISO 2341 |
| Style | Clevis pin with hole/clevis pin with groove (for cotter pin) |
| Material | Carbon Steel / Alloy Steel / Stainless Steel 304 / 316 |
| Surface Finish | Plain / Zinc Plated / Black Oxide / Passivated |
| Hardness | HRB 80–220 (grade-dependent) |
| Operating Temperature | -40°C ~ 250°C (material-dependent) |
| Features | High shear strength, secure locking with a cotter pin |
| Application | Linkage assemblies, machinery, lifting equipment, and agricultural implements |
Applications
Automotive linkages, construction equipment, agricultural machinery, and industrial pivoting assemblies.
