Product Overview
The Anchor bolt is a heavy-duty fastener designed to secure structures to concrete, masonry, or other solid substrates. These bolts embed deep into the base material, creating a permanent, high-strength connection for structural stability.
Key Features
Engineered for permanent anchoring into concrete and masonry.

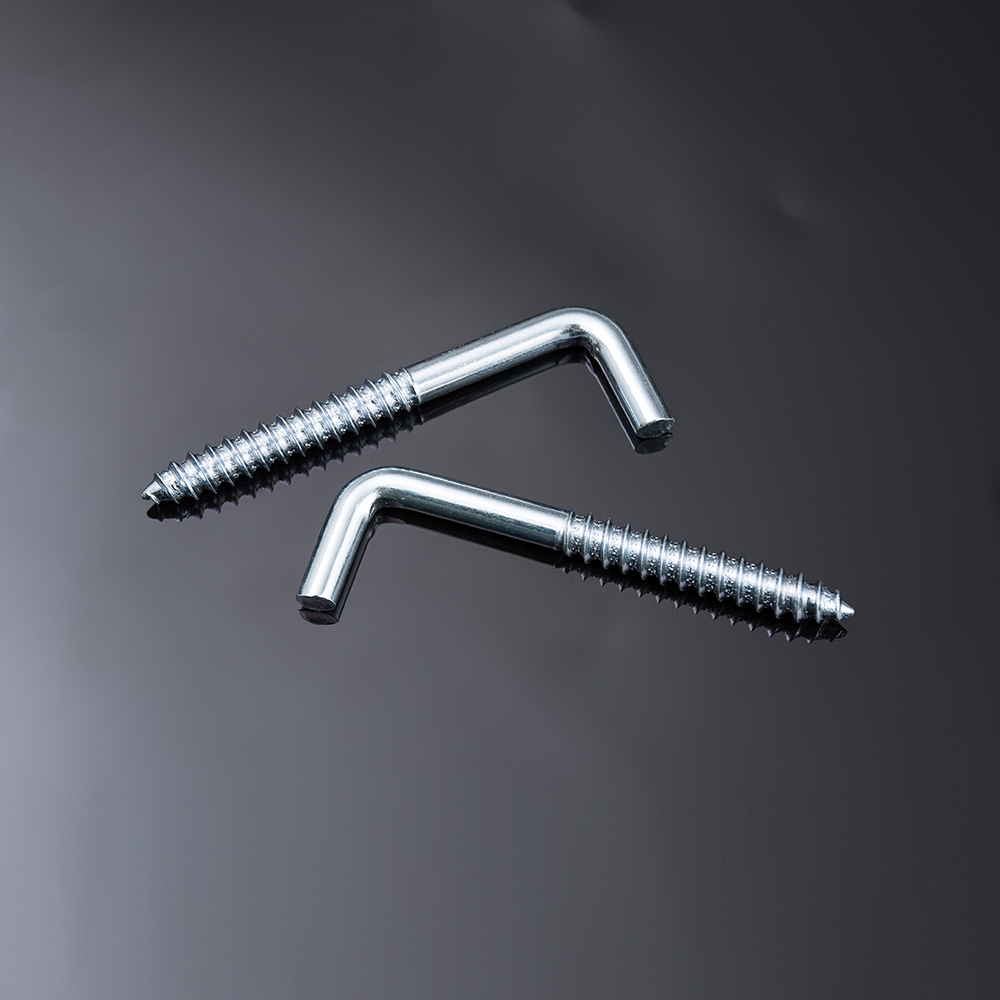

Available in L-shaped, J-shaped, and straight designs for different installation needs.
Multiple material and finish options for corrosion resistance in outdoor environments.
Meets industry standards for load-bearing and pull-out strength.
Customizable lengths and diameters to suit specific project requirements.
| Grade | 4.8 / 8.8 / 10.9 |
| Size Range | M10–M64 (custom lengths available) |
| Thread Type | Metric / UNC / UNF (customizable) |
| Standards | DIN 529 / ASTM F1554 / ISO 898-1 |
| Heat Treatment | Quenched and Tempered (for high grades) |
| Tensile Strength | ≥ 400–1000 MPa (grade-dependent) |
| Yield Strength | ≥ 240–900 MPa (grade-dependent) |
| Hardness | HRB 120–220 / HRC 22–32 (grade-dependent) |
| Head Style | Anchor Bolt (L-type / J-type / straight type optional) |
| Thread Class | 6g (metric) / 2A (imperial) |
| Operating Temperature | -40°C ~ 250°C |
| Material | Carbon Steel / Alloy Steel / Stainless Steel 304/316 |
| Surface Finish | Plain / Zinc Plated / HDG / Black Oxide |
| Application | Concrete foundations, steel structures, towers |
Applications
Building foundations, bridge supports, highway guardrails, heavy machinery bases, signposts, and industrial equipment anchoring.
