Product Overview

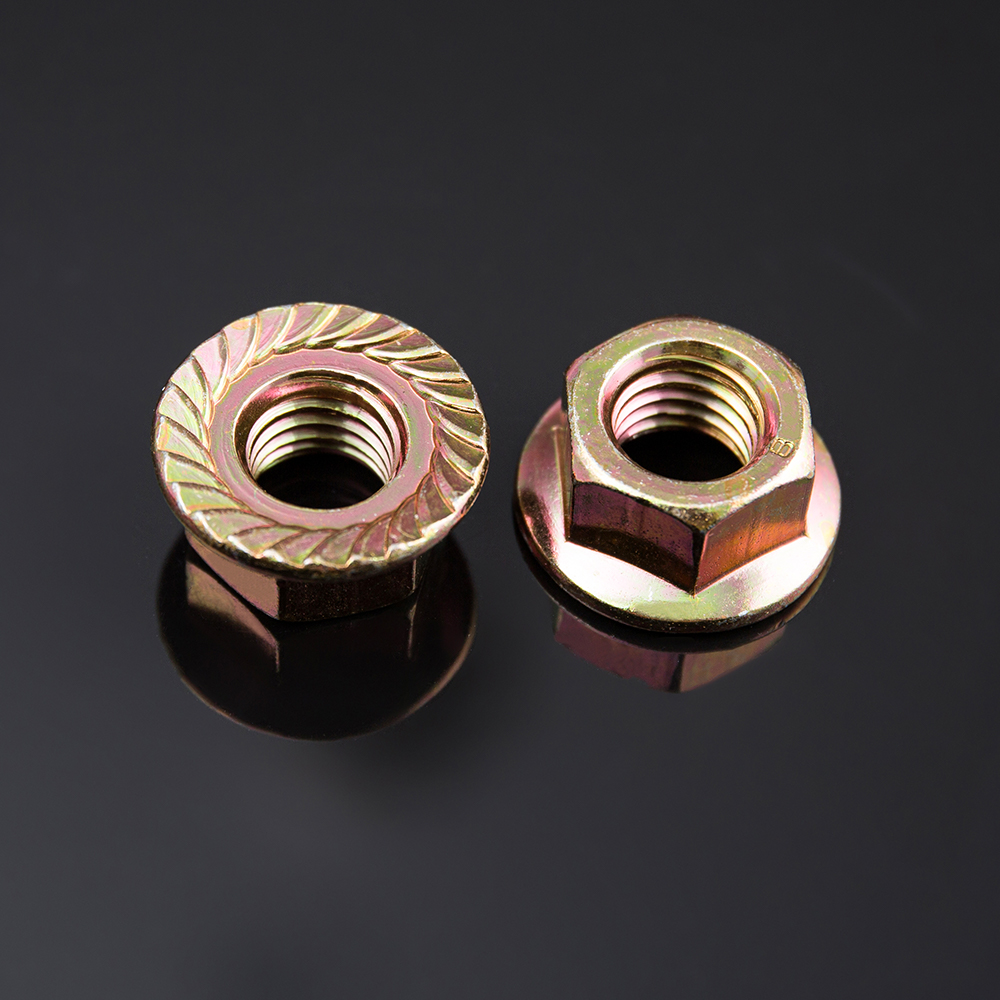

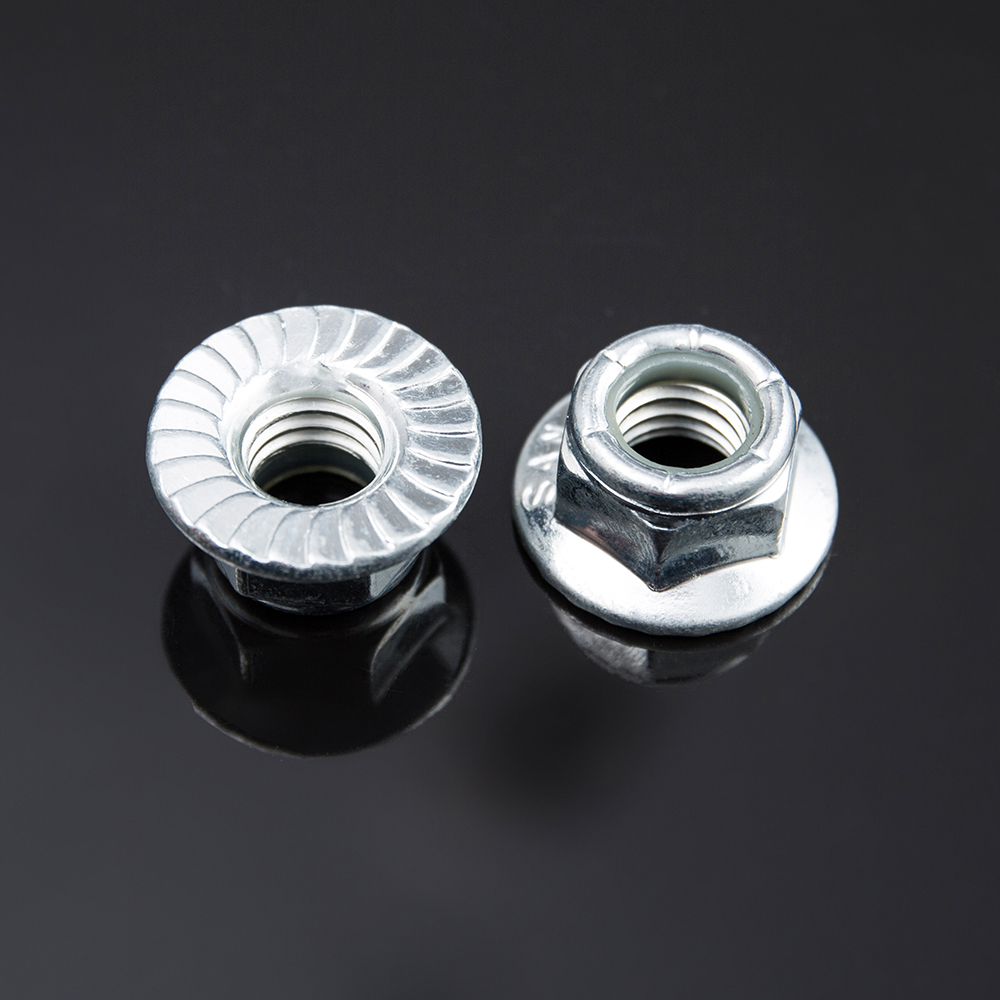

The Standard Flange Nut combines a traditional hex nut with an integrated washer-like flange, distributing clamping force over a larger surface area to prevent pull-through in soft or thin materials. It eliminates the need for a separate washer in many applications.
Key Features
Integrated flange for increased bearing surface and load distribution.
Reduces the risk of damage to thin or soft materials during tightening.
Hex head design for use with standard installation tools.
Available in various materials and finishes for corrosion resistance.
Streamlines assembly by eliminating the need for separate washers.
| Grade | 5 / 8 / 10 / A2-70 / A4-80 |
| Size Range | M4–M30 / #6"–1" (custom sizes available) |
| Thread Type | Metric (ISO) / UNC / UNF |
| Standards | DIN 6923 / ISO 4161 / ASTM A563 |
| Flange Style | Serrated / Non-serrated (anti-slip optional) |
| Thread Class | 6H (metric) / 2B / 3B (imperial) |
| Material | Carbon Steel / Alloy Steel / Stainless Steel 304 / 316 |
| Surface Finish | Plain / Zinc Plated / HDG / Black Oxide / Dacromet |
| Operating Temperature | -40°C ~ 250°C (material-dependent) |
| Application | Automotive, machinery, piping, structural assemblies |
Applications
Automotive manufacturing, furniture assembly, sheet metal fabrication, and general industrial fastening.
